Explore SConfig Options on Windows Server Core Installation

In this post, we’ll look at all the SConfig options for the Windows server core installation. You can use the Server Configuration Tool (SConfig) to configure and manage a Windows Server.

When you install Windows Server Core, you can use the Server Configuration Tool (SConfig.cmd) to set up and manage different parts of Server Core installations. However, note that you must be a member of the Administrators group to use the tool.

SConfig is the primary way to configure and manage common aspects of the Windows Server operating system, including:

  • Network configuration
  • Active Directory domain membership
  • Installation of Microsoft updates
  • Operating system activation

Launch SConfig on Windows Server Core

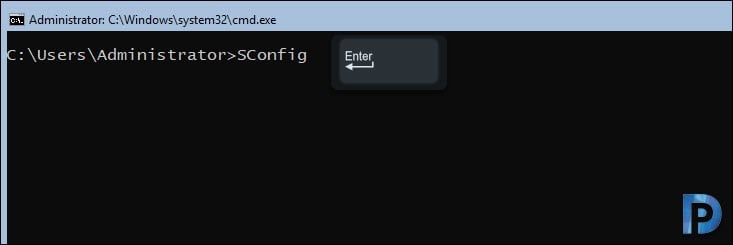

SConfig starts automatically with Windows Server 2022 (deployed in the Server Core installation option). To launch SConfig on the server core, login to your Windows server core. Type SConfig and press Enter.

Launch SConfig on Windows Server Core
Launch SConfig on Windows Server Core

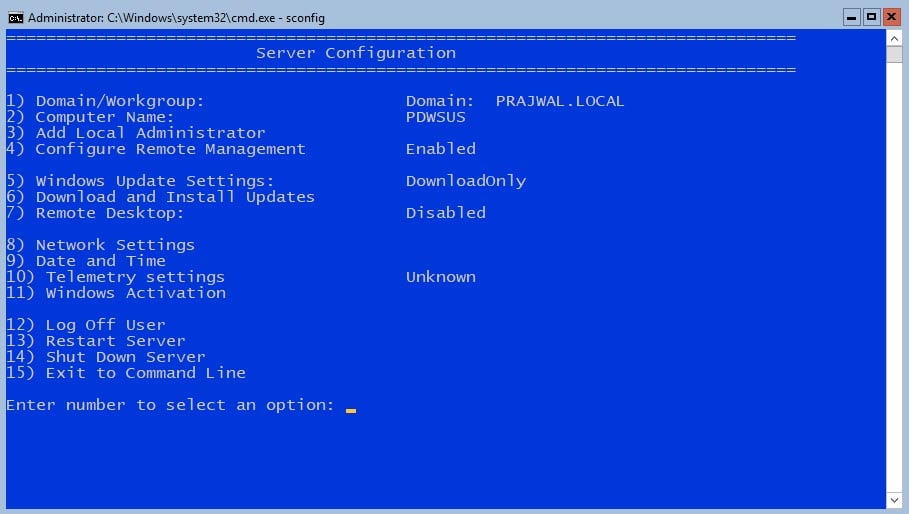

This brings up the Server Configuration Tool. At the time of writing this post, the Server Configuration tool has 15 options displayed on its main menu.

Launch SConfig on Windows Server Core
Launch SConfig on Windows Server Core

SConfig Options on Windows Server Core

When you start the Server Configuration Tool (SConfig.cmd), you see a list of options or settings. I will cover each of them along with screenshots.

Domain/Workgroup

Using the Domain/Workgroup option, you can join the server to an Active Directory domain or a workgroup. A detailed post on how to add Windows server core to domain is posted here – https://www.prajwaldesai.com/how-to-join-a-windows-server-core-to-domain/

Computer Name

With this option, you can change the server name. You also get the option to change the computer name while you join it to the domain. Most of all, a restart is required when you change the computer name.

Add Local Administrator

To add additional users to the local administrators group, use the Add Local Administrator option. On a domain joined machine, enter the user in the following format: domain\username. On a non-domain joined machine (workgroup machine), enter only the user name. The changes take effect immediately.

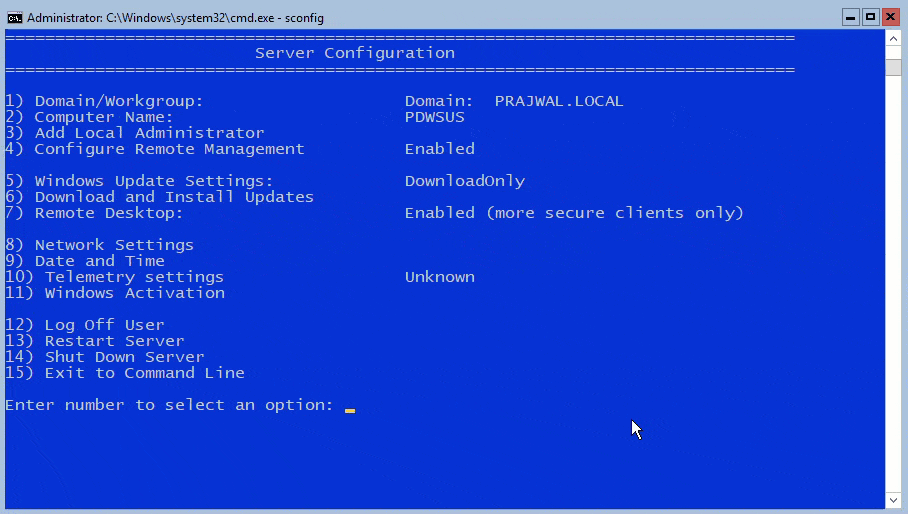

Configure Remote Management

Option 4 lets you configure remote management. Note that Configure Remote Management is enabled by default. When you type 4 and press enter you see three options and they are all self-explanatory.

  1. Enable Remote Management
  2. Disable Remote Management
  3. Configure Server Response to Ping
Configure Remote Management

Windows Update Settings

The server can be configured to use Automatic or Manual updates using Windows Update Settings. When Automatic Updates is turned on, the system will check for updates every day at 3:00 AM and install them if there are any. When Manual updates are chosen, the system will not automatically check for updates.

Windows Updates Settings

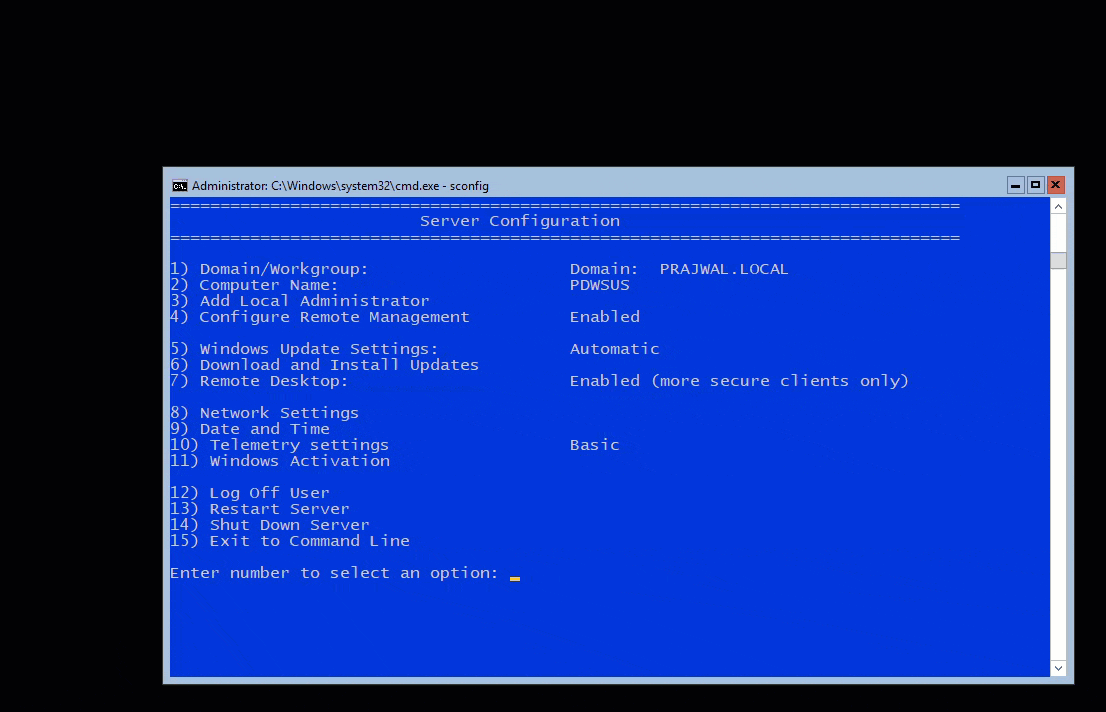

Download and Install Updates

At any time, you can download and install applicable updates from the Download and Install Updates option on the main menu.

The Download Only option will scan for updates, download any that are available, and then notify you in the Action Center that they are ready for installation. This is default option.

Download and Install Updates

Remote Desktop

When you install Windows Server core, by default the Remote Desktop is disabled. However, you can use the option 7 to enable remote desktop.

Type 7 and press Enter. You should see two options.

  1. Allow only Clients running Remote Desktop with Network Level Authentication
  2. Allow clients running any version of Remote Desktop

Type either 1 or 2 based on your requirement and press Enter key. On the confirmation box click OK.

Enable Remote Desktop

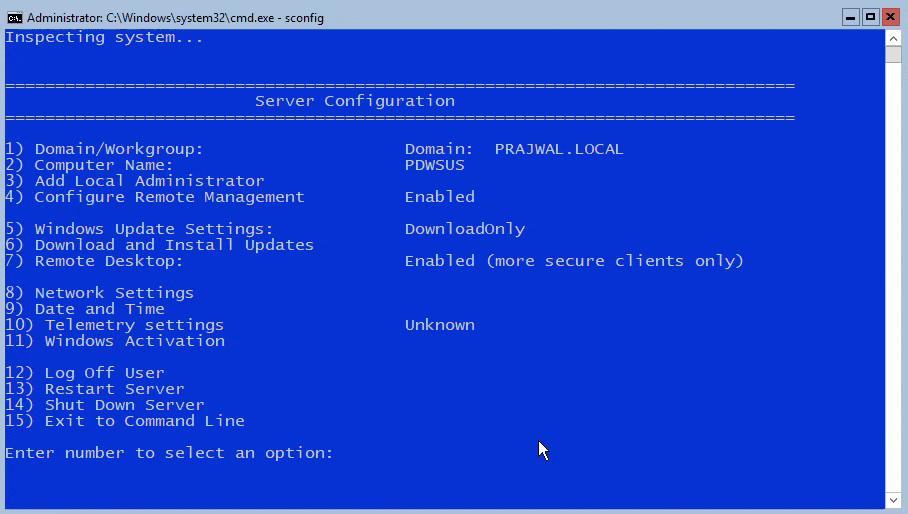

Network Settings

Using Network Settings you can configure the Server IP address. You can select IP assigned by a DHCP Server or you can assign a static IP address manually. This option allows you to configure DNS Server settings for the server as well.

Type 8 and press enter. Select your network adapter, and you will see some more options like :-

  • Set Network Adapter Address
  • Set DNS Servers
  • Clear DNS Server Settings
Configure Network Settings

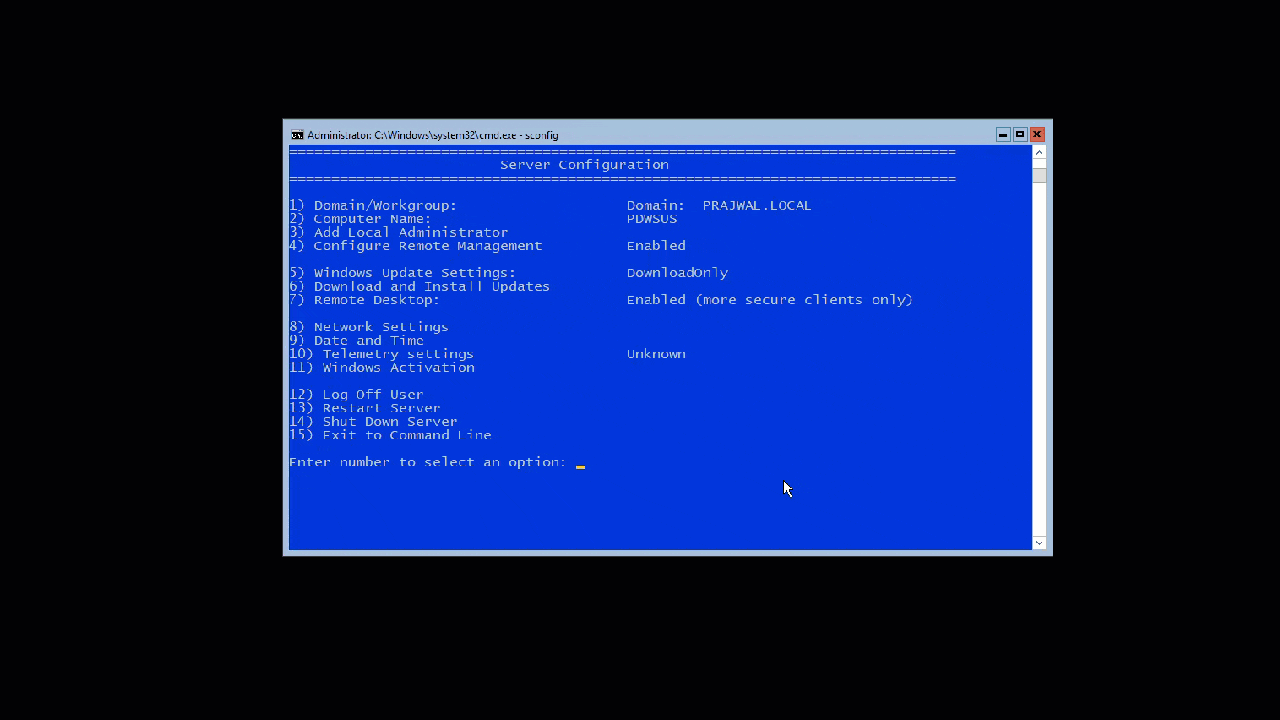

Date and Time

You can change date and time settings by accessing the Date and Time main menu option. Type 9 and press Enter.

Configure Date and Time Settings

Telemetry Settings

This option lets you configure the data that’s sent to Microsoft. Type 10 and press Enter. Click Yes if you want to change Telemetry Settings.

The available Telemetry options include :-

  1. Security
  2. Basic
  3. Enhanced
  4. Full
Configure Telemetry Settings

Windows Activation

This option lets you configure Windows Activation. Type 11 and press Enter.

You can perform the following actions.

  1. Display License Info
  2. Activate Windows
  3. Install Product Key
Windows Activation

Log Off User

Use this SConfig option to log off from the server.

Log Off User

Restart Server

Use this option to restart your Windows Server. Type 13 and press Enter. Click Yes to restart the server.

Restart Windows Server

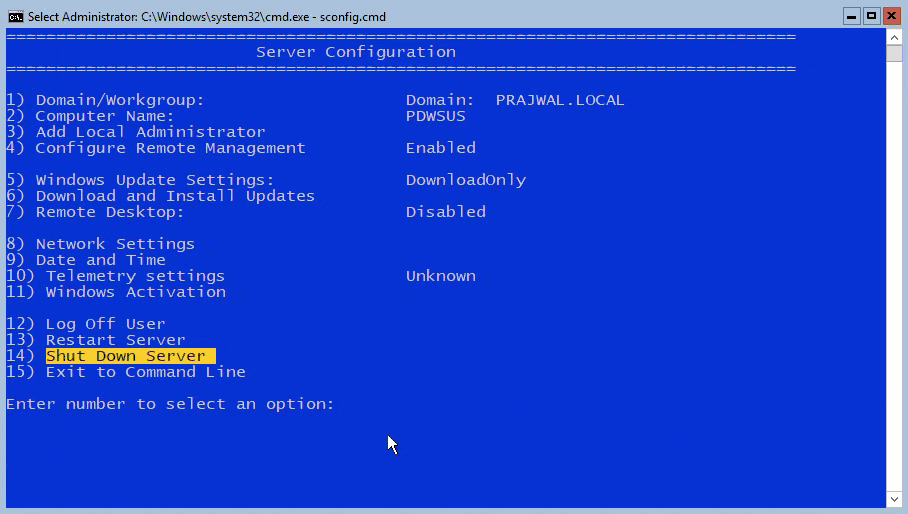

Shut Down Server

Use this option to Shut Down the server. Type 14 and press enter. Click Yes to confirm the server shutdown.

Shutdown Server

Exit to Command Line

This option lets you exit the Server Configuration Tool and go back to the command line. To return to the Server Configuration Tool, type SConfig.cmd, and then press ENTER.

Exit command line
