Super Easy Guide to Perform SCOM 1807 Upgrade

Welcome to another post on Operations Manager where I will cover SCOM 1807 upgrade steps. You can easily upgrade to SCOM 1807 if you have SCOM 1801 running in the setup. SCOM 1807 comes with exciting features and improvements over previous version i.e. SCOM 1801.

In my previous post, I covered the steps to install Operations Manager version 1801. While writing the post I did mention that the latest Operations Manager version is 1807.

To perform a successful upgrade of System Center Operations Manager version 1801 to 1807, you can go with either of two methods listed below.

Using Windows updates, upgrade to SCOM 1807
Manually download update packages from the Microsoft Update Catalog

Which upgrade method is easy ?. – If you ask me, I would say first method i.e. using Windows Updates. It is definitely easy when you have all SCOM features installed on one server.

Should I Upgrade SCOM 1801 to SCOM 1807 ? – While it is not mandatory that you have to upgrade to SCOM 1807 but it is always beneficial to use latest version of SCOM. You must have System Center Operations Manager, version 1801 installed before you install this update.

What’s new in Operations Manager 1807

Some of the cool features of Operations Manager 1807 include :-

Linux Agent Log Rotation
HTML5 Web console enhancements
Support for SQL Server 2017
Enable/Disable APM Feature During Agent Deployment
New HTML5 dashboard PowerShell Widget
Support for Operations Manager and Service Manager console coexistence

In addition to the above features, there are much more new features. You can read more about it here.

Before you Upgrade to Operations Manager 1807

There is a sequential order in which you must 1807. Here is the article about it. In my lab setup, I installed all the SCOM features on a single server including the SQL server. Hence it might be easy for me to upgrade to SCOM 1807. However it is not the case with everyone, especially when you have SCOM features installed on different servers. Therefore ensure that you read the order in which updates needs to be installed.

Perform SCOM 1807 Upgrade

As I mentioned above, there are two ways to upgrade SCOM 1801 to 1807. Using windows updates or by manually downloading and installing updates from Microsoft Update Catalog.

Method 1 – Upgrade to Operations Manager 1807 via Windows Updates

On the server running SCOM, open Control Panel.
Click Windows Update.
In the Windows Update window, select Check for updates.
Click Optional Updates.

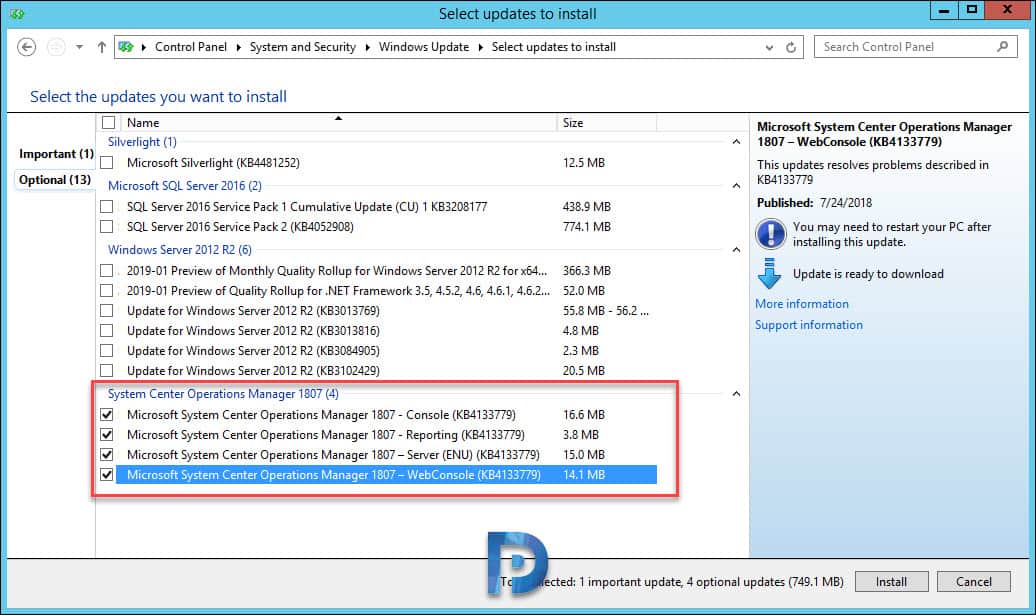

Under System Center Operations Manager 1807, select all the 4 updates.
Click Install.

It is important that you select all the 4 updates under SCOM 1807.

Microsoft System Center Operations Manager 1807 - Console (KB4133779)

Microsoft System Center Operations Manager 1807 - Reporting (KB4133779)

Microsoft System Center Operations Manager 1807 – Server (ENU) (KB4133779)

Microsoft System Center Operations Manager 1807 – WebConsole (KB4133779)

After installing the updates, you must reboot the server. Log in to SCOM server, launch Operations Console. On the top menu click Help > About. That should bring up the window that displays System Center Operations Manager version as 1807. The Server Version is 7.3.13261.0. Click OK to close the window.

Method 2 – Upgrade to SCOM 1807 by downloading Operations Manager Update Package

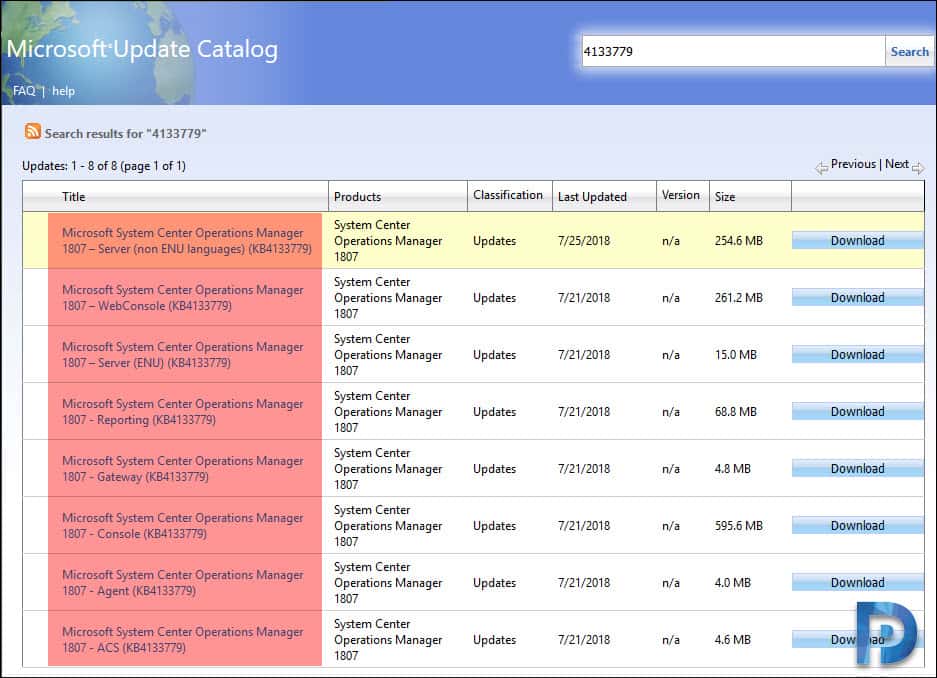

The second method to upgrade to Operations manager version 1807 is by manually downloading KB4133779 package. You can download the update package directly from Microsoft Update Catalog. Notice that the updates are available for different components. You need to download each update and install them in sequential order.

In order to manually update Operations Manager Features, refer this article.
